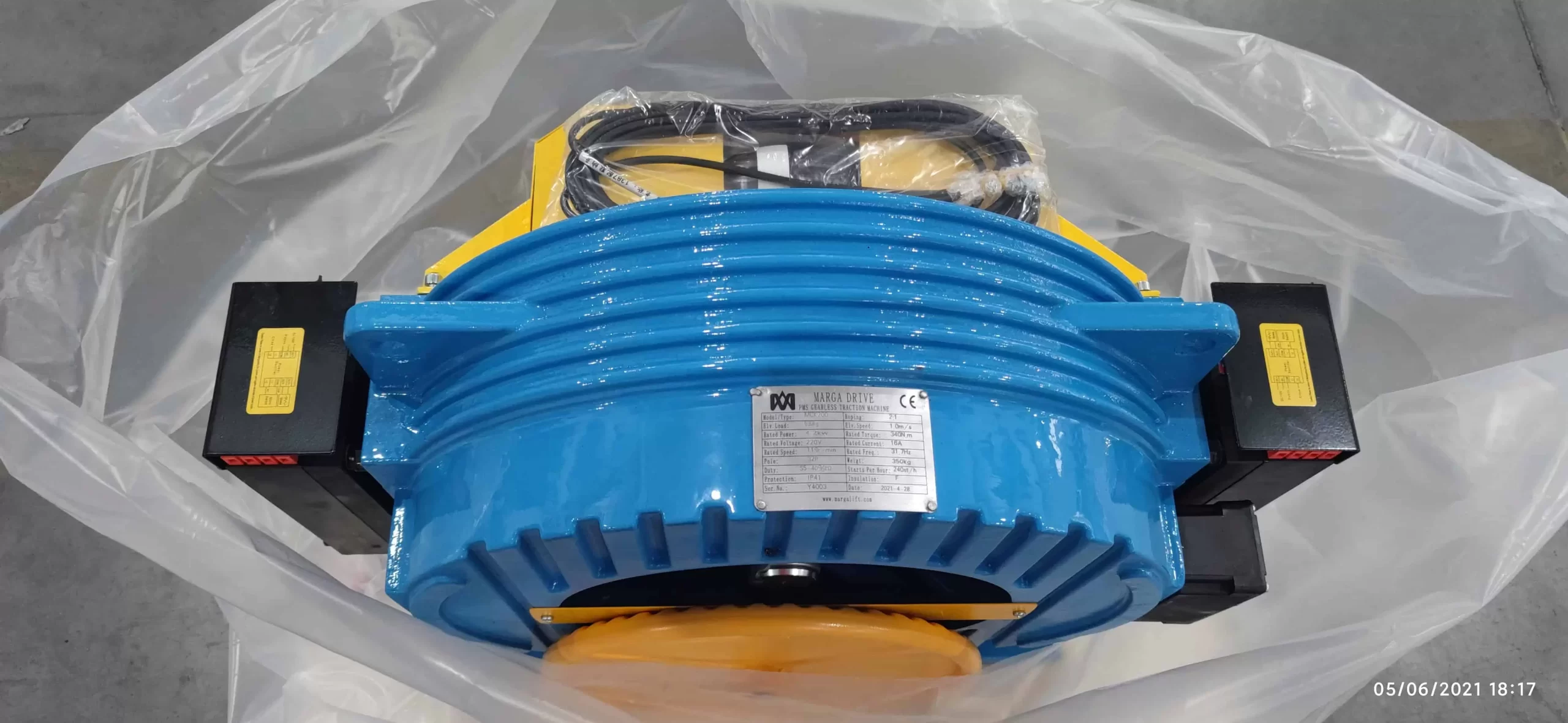

Gearless machine MARGADRIVE MD 400-450-480 - Image 10
Gearless machine MARGADRIVE MD 400-450-480 - Image 11

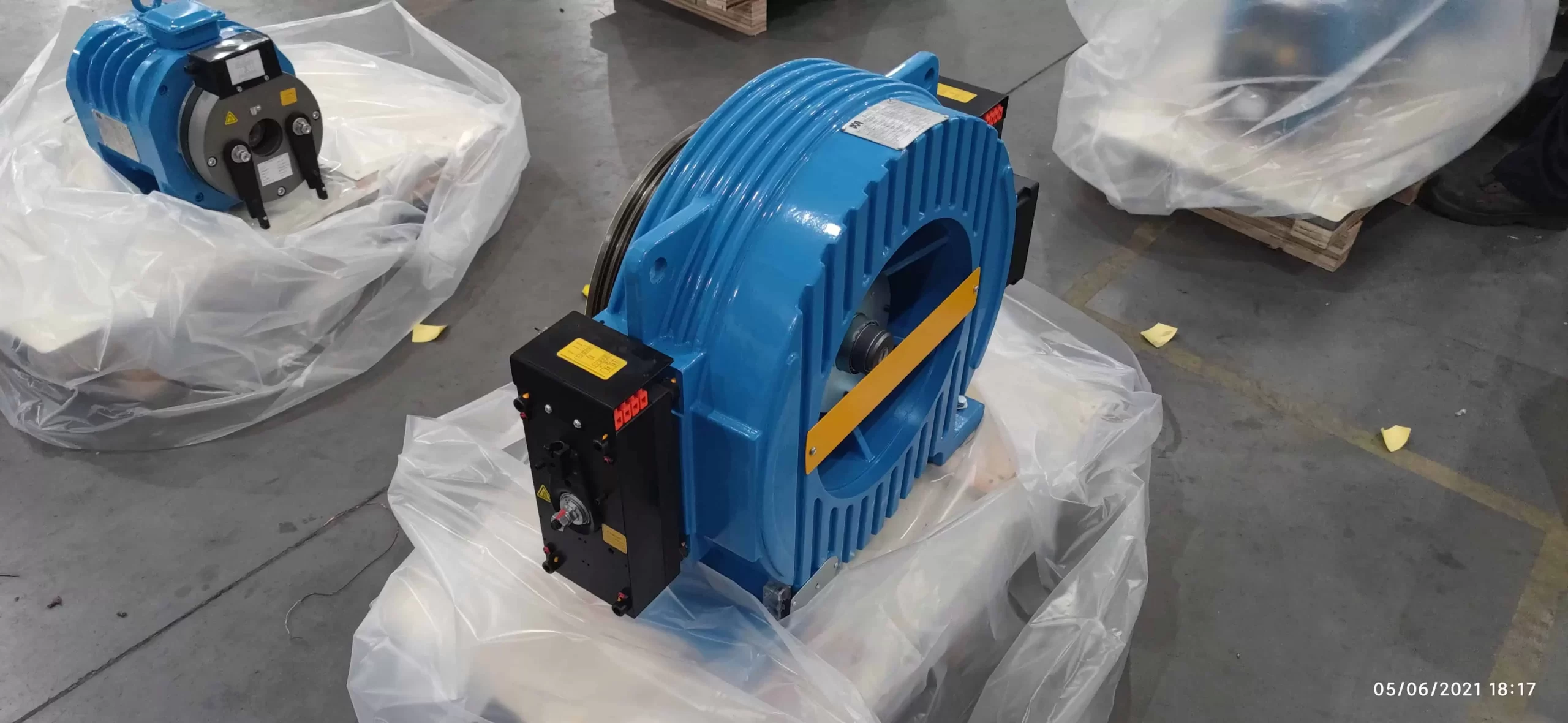

Gearless machine MARGADRIVE MD 400-450-480 - Image 12
Gearless machine MARGADRIVE MD 400-450-480 - Image 13

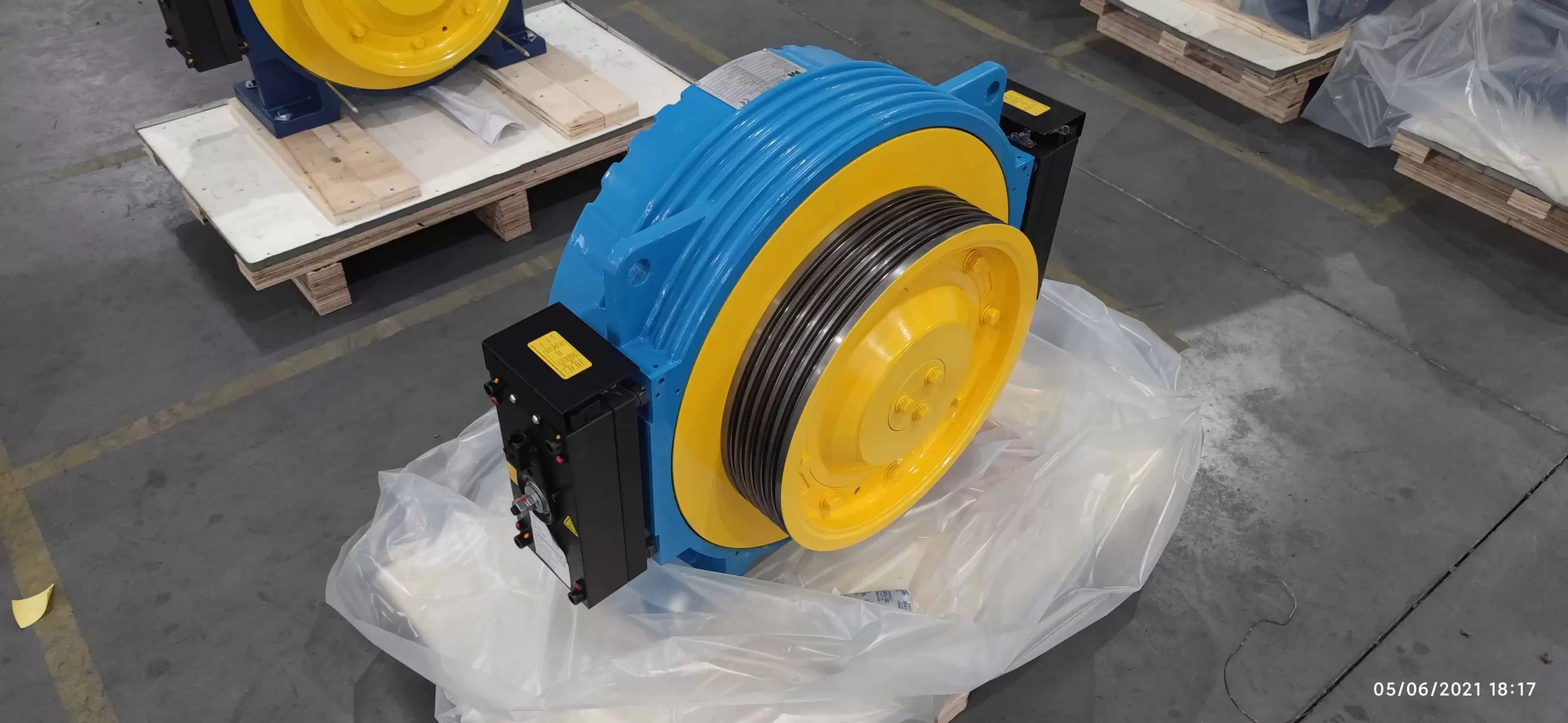

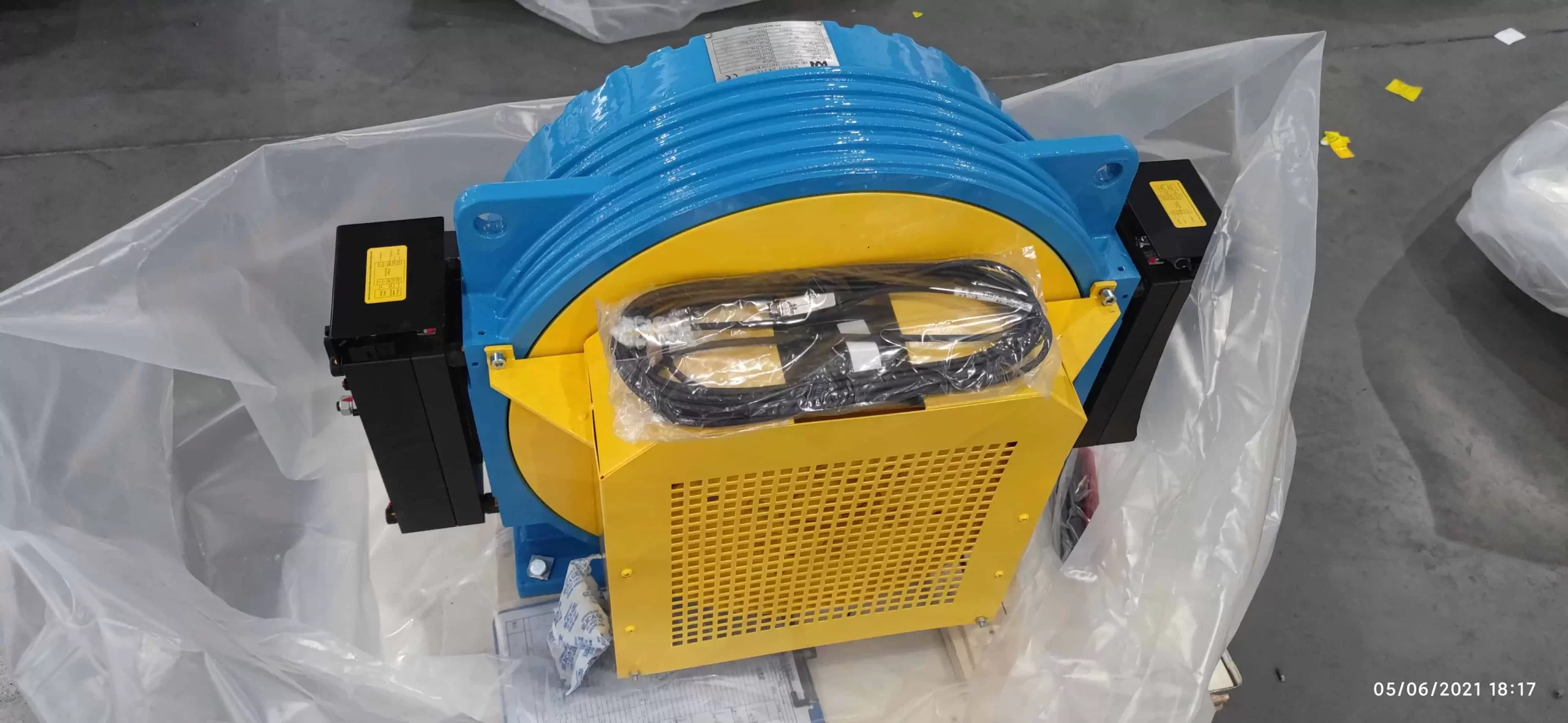

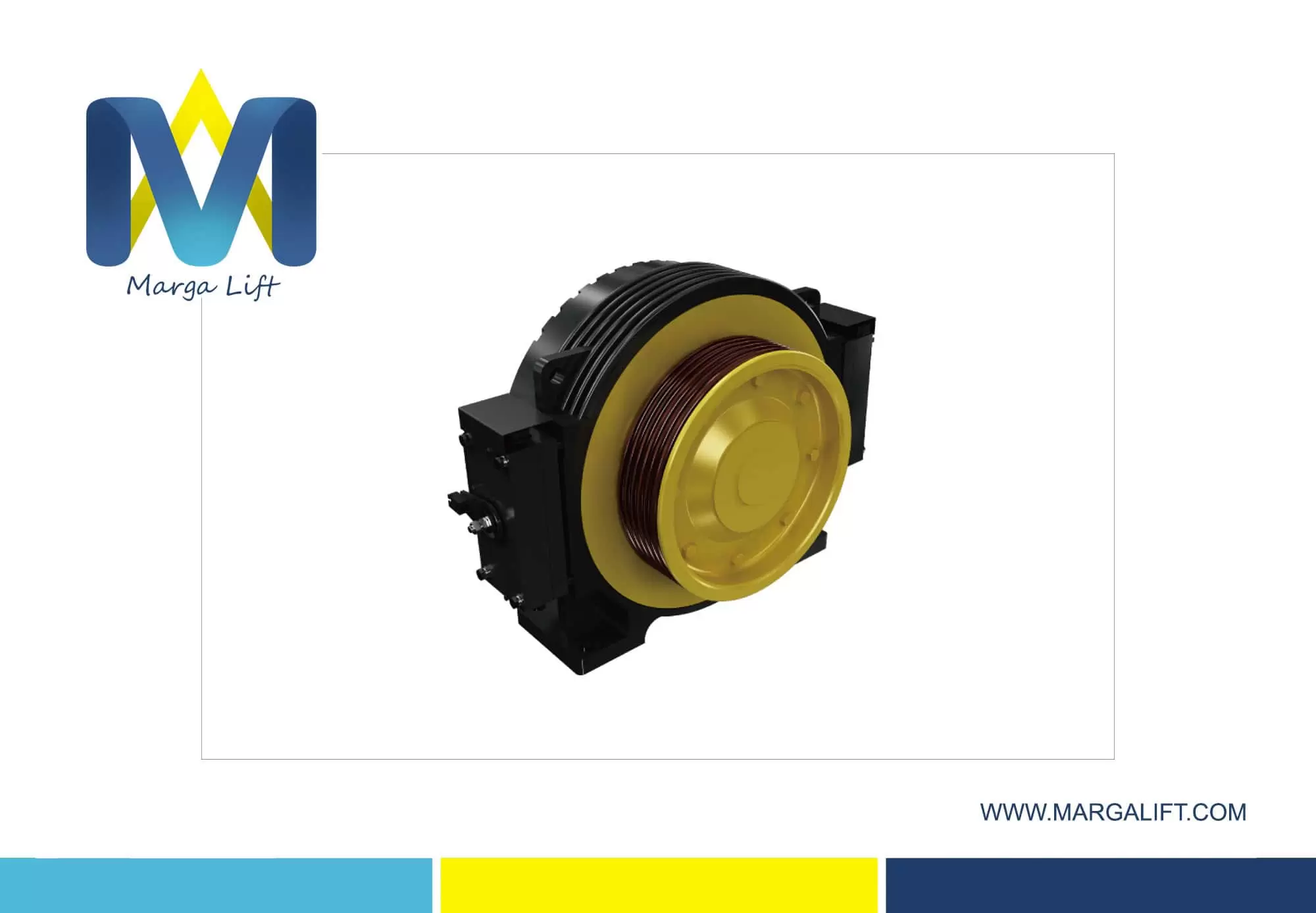

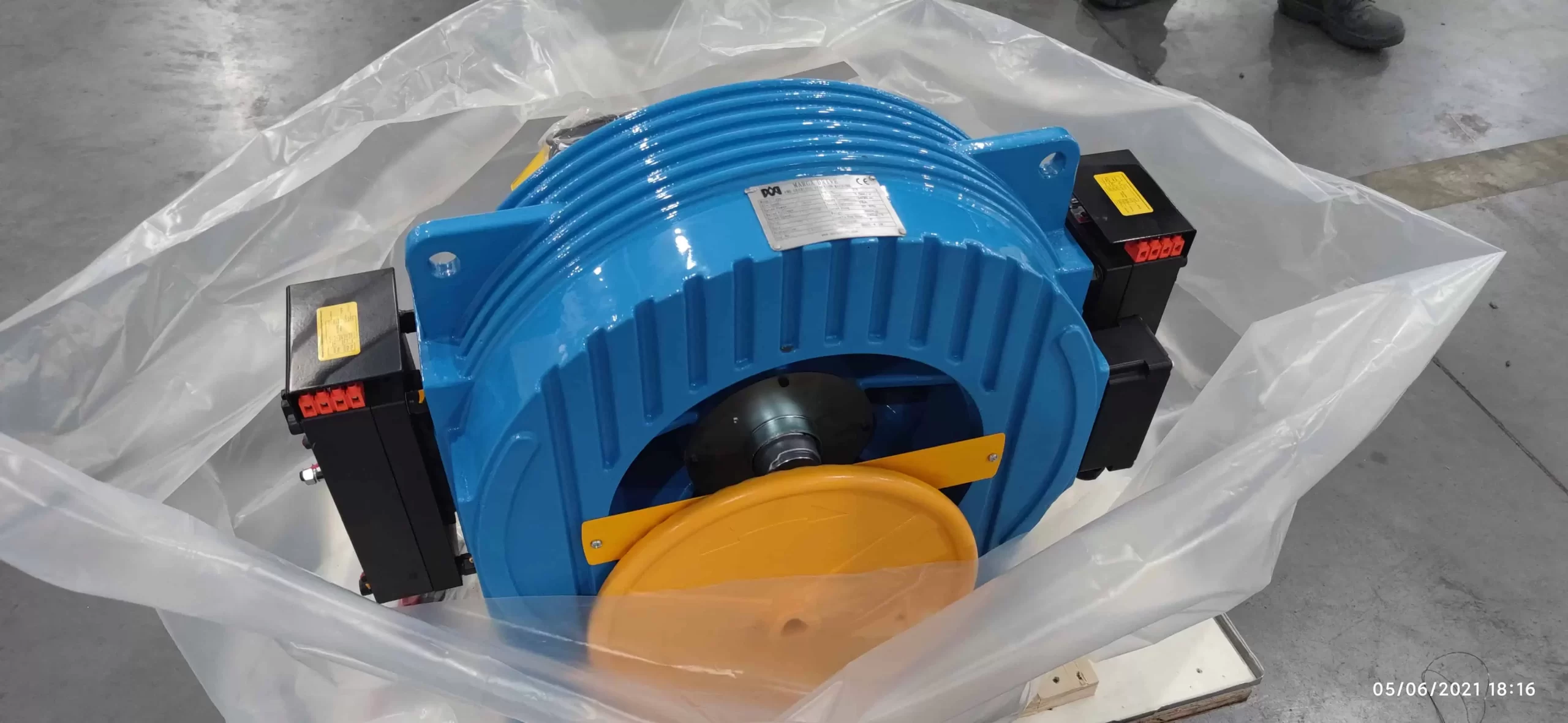

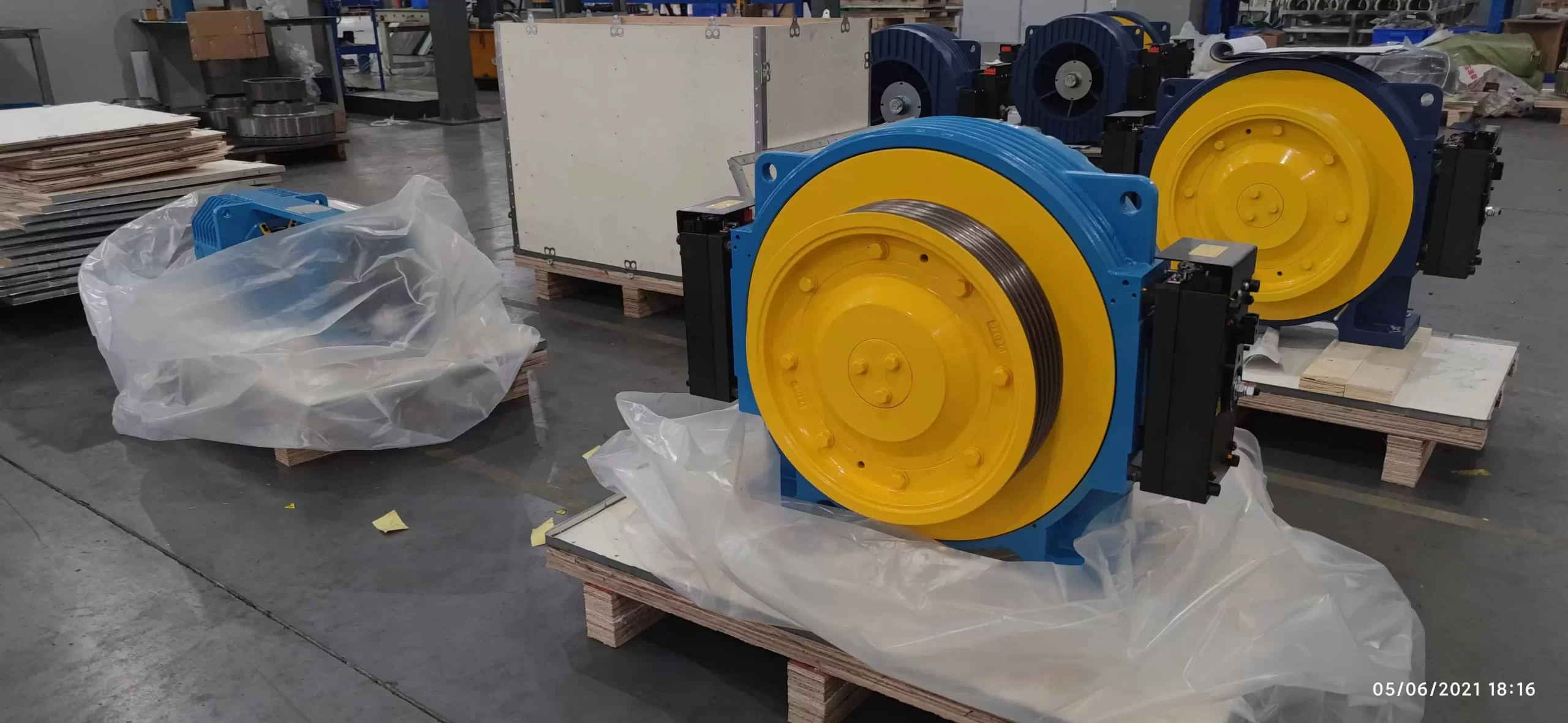

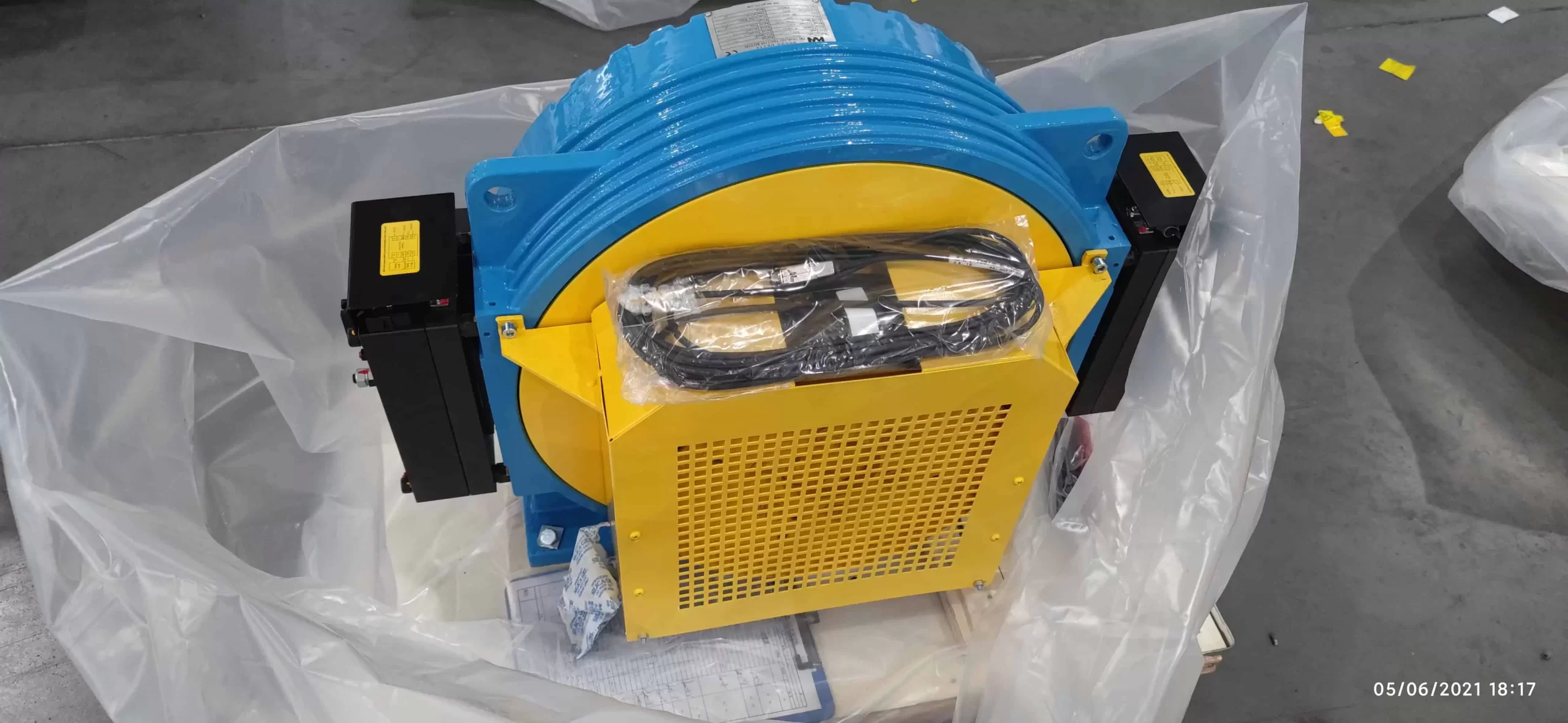

Gearless machine MARGADRIVE MD 400-450-480

Price range: 1,210.00€ through 2,450.00€

SKU: N/A Categories: , , ,

Description

MARGA DRIVE MD 400-450-480

ID:0074-0263

Permanent Magnet Synchronous Gearless Traction Machine

Specifications
Voltage 380v
Roping 2:01
Wrap single
Elv.Load 630-3000kg
Elv.Speed 0.5-2.5 m/s

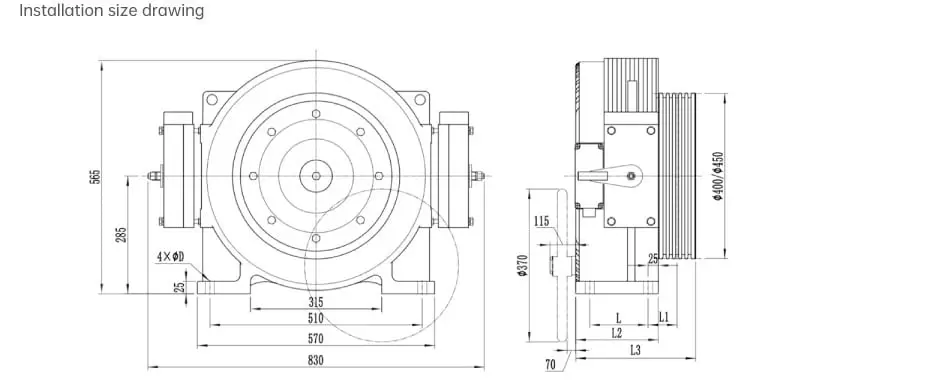

Sheave Diam 400mm/480mm
Duty S5-40%ED
Starts Per Hour 240st/H
Max.Static Load 4000KG
Weight 350KG

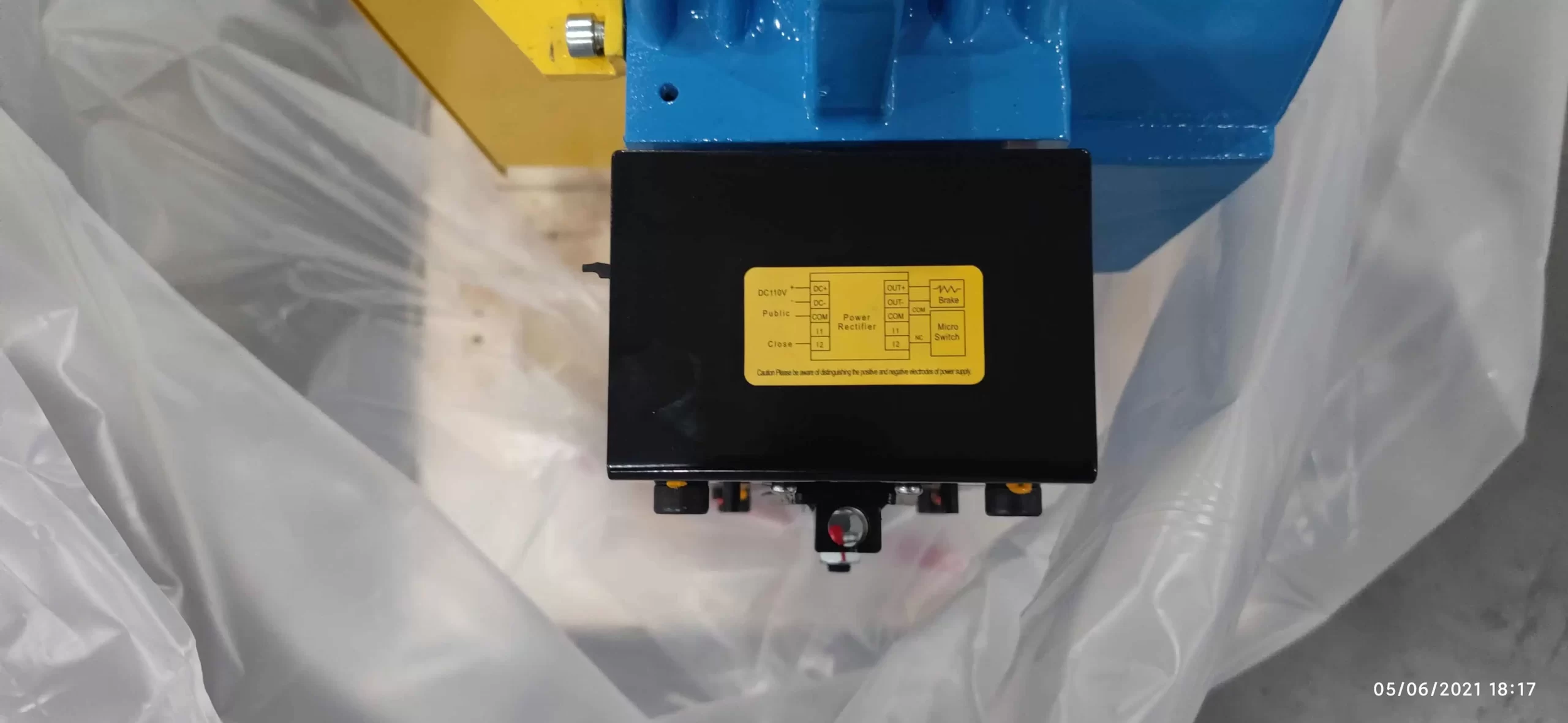

Brake DC110V 2*1.3A
IP code IP41
Ins.Class F

Additional information

Weight N/A
Dimensions N/A
Roping System

2:1, 1:1, 4:1
MGL load (KG)

450 (6 persons), 550 (7 persons), 630 (8 persons), 700 (9 persons), 800 (10 persons), 1000 (13 persons), 1150 (15 persons), 1250 (16 persons), 1350 (18 persons), 1600 (21 persons), 3000 (40 persons)
Sheave diameter (mm)

400mm, 450mm, 480mm
MGL Speed (m/s)

0.5, 1.0, 1.6, 1.75, 2
