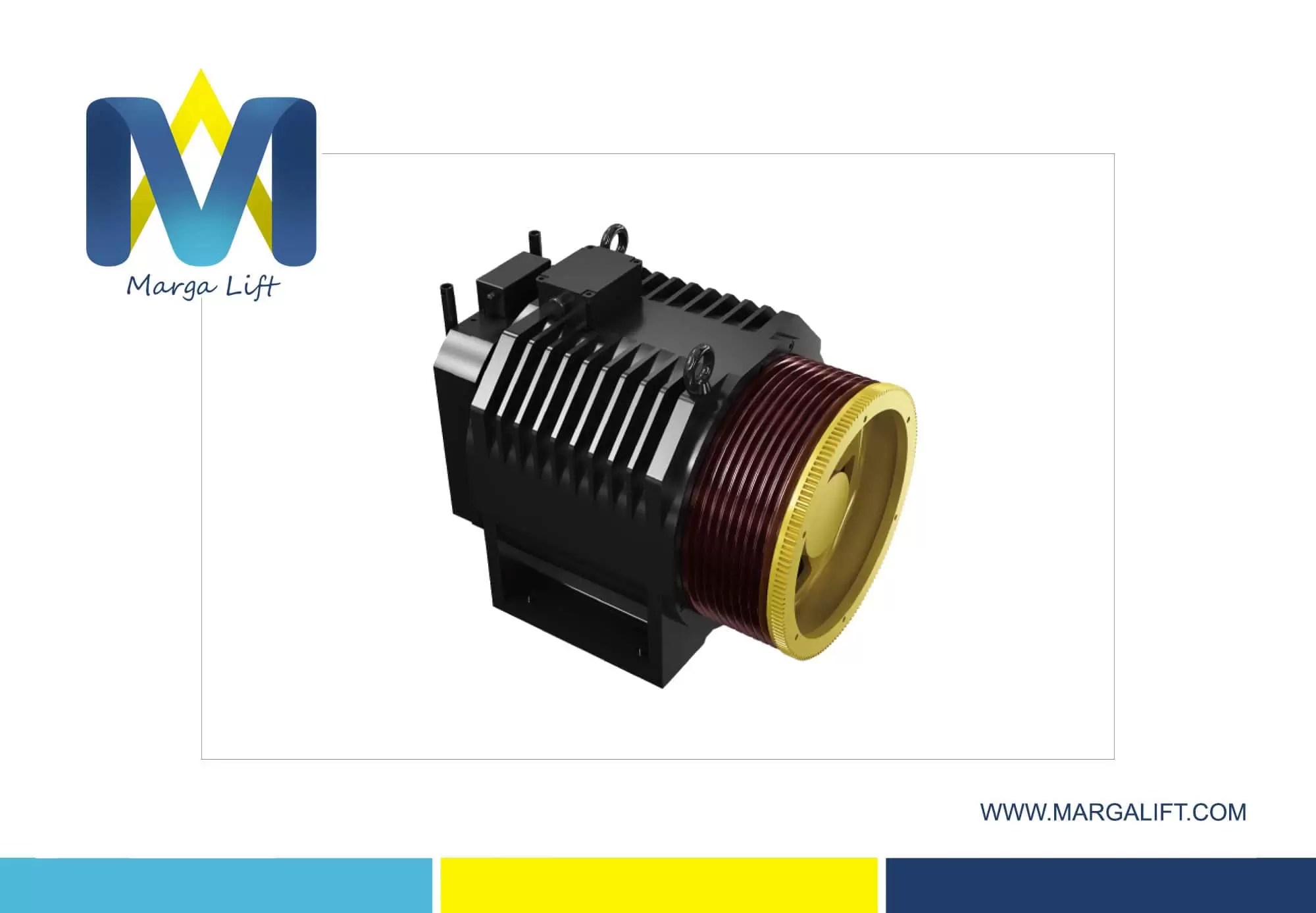

Gearless machine MARGADRIVE YN 450

This product is currently out of stock and unavailable.

Description

MARGA DRIVE YN 400-450-480-520

ID:0074-0263

Permanent Magnet Synchronous Gearless Traction Machine

Specifications
Voltage 380v
Roping 1:1/2:1/4:1
Wrap single
Elv.Load 1150-5500kg
Elv.Speed 0.5-2.5 m/s
Sheave Diam 400mm/520mm
Duty S5-40%ED
Starts Per Hour 240st/H
Max.Static Load 12000KG
Weight 900KG
Brake DC110V 2*2.3A
IP code IP41
Ins.Class F



Additional information

Roping System

2:1, 1:1, 4:1

MGL load (KG)

1150 (15 persons), 1250 (16 persons), 1350 (18 persons), 1600 (21 persons), 2000 (26 persons), 2500(33 persons), 3000 (40 persons), 3200 (42 persons), 3500 (46 persons), 4000 (53 persons), 4500 (60 persons), 5000 (66 persons), 5500 (73 persons)

Shave diameter (mm)

400mm, 450mm, 480mm, 520mm

MGL Speed (m/s)

0.5, 1.0, 1.6, 1.75, 2
