Choosing the right motor room configuration is key to elevator performance, space efficiency, and cost management. Let’s explore the main types of elevator motor room systems, divided into MR (Motor Room) and MRL (Motor Room-Less) setups.
1. MR Elevators (Elevators with Motor Room)
- MR elevators feature dedicated motor rooms for housing motors, control systems, and other critical equipment, offering easier maintenance and higher capacity.
Types of MR Elevators

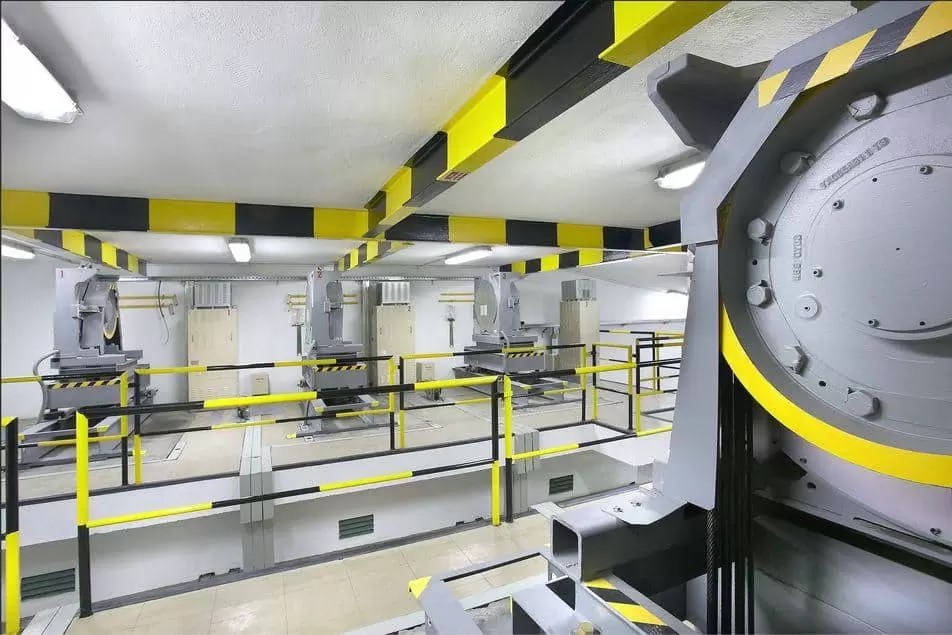

a) Full Motor Room: Located above the hoistway (on the roof or top floor), ideal for large, high-power motors.
Pros: Easy maintenance supports heavy loads.
Cons: Requires extra space and construction.
b) Semi-Enclosed Motor Room: Near the hoistway with a smaller footprint.
Pros: Saves space, easier maintenance than MRL systems.
Cons: Limited motor size.
c) Upper Motor Room (Overhead): Positioned directly above the elevator shaft.
Pros: Direct connection to hoist, great for high-speed systems.
Cons: Possible noise issues.
d) Lower Motor Room (Basement): Located beneath the hoistway.
Pros: Reduces noise on upper floors.
Cons: Risk of moisture damage.
e) Adjacent Motor Room: Positioned on the same floor but next to the hoistway.
Pros: Space-saving and easy access.
Cons: Reduced efficiency due to mechanical energy transmission.
2. MRL Elevators (Elevators without Motor Room)
- MRL elevators house motors and controls inside the elevator shaft, saving valuable space and making them ideal for modern, space-constrained buildings.
Types of MRL Configurations
a) Upper Motor (Top of the Shaft): Motor mounted at the shaft’s top.
Pros: Space-saving and efficient for high-rise buildings.
Cons: Restricted maintenance access.
b) Middle Motor (Mid-Shaft): Motor placed mid-way within the shaft.
Pros: Balanced load distribution.
Cons: Requires specialized maintenance.
c) Motor on the Cabin: Motor mounted on the elevator cabin.
Pros: Maximum space savings, good for retrofitting.
Cons: Adds weight and cabin noise.
d) Motor in the Well or Pit: Positioned at the base of the shaft.
Pros: Keeps top areas clear, easier maintenance.
Cons: Vulnerable to moisture.
Key Comparison: MR & MRL
| Aspect | MR Elevators | MRL Elevators |
| Space Requirement | Needs additional motor room | No motor room required |
| Maintenance | Easy access | Limited within the shaft |
| Cost | Higher construction cost | Lower construction cost |
| Power Capacity | High-power motors supported | Limited to smaller motors |
| Noise/Vibration | Isolated from users | Can transmit into cabin |
| Application | High-rise/older buildings | Modern/space-limited buildings |
Conclusion
The choice between MR and MRL elevators depends on your building’s space, budget, and performance needs. MR systems provide high flexibility and capacity but need dedicated space, while MRL elevators are ideal for modern, space-saving designs. Choosing wisely ensures optimal efficiency and long-term reliability.
