Description
Quick Details
Model Number:CNHC-038A
Type:Escalator Parts
Product name:escalator handrail pressure chain, support chain Size:60*55 mm
Pitch:70 mm;6202 bearing

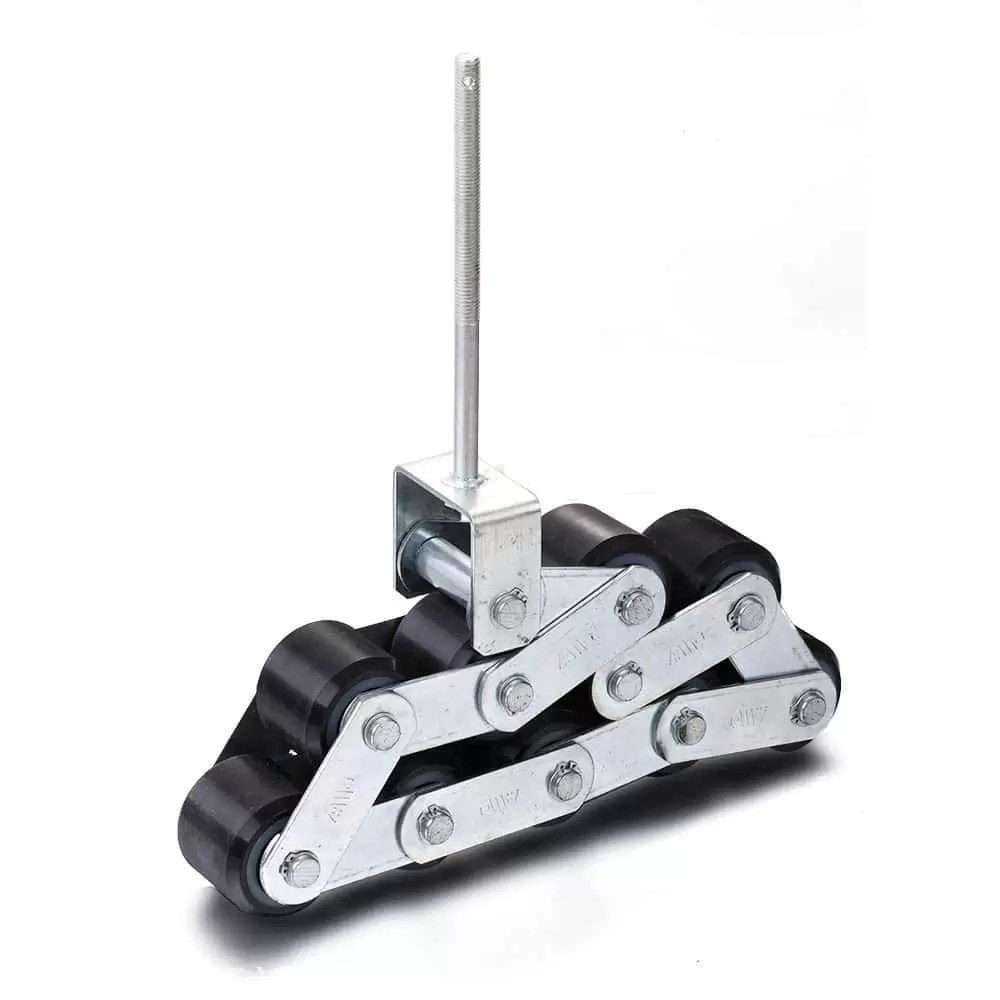

Escalator handrail pressure

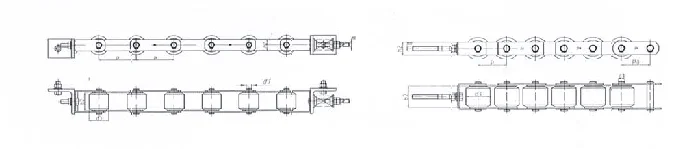

Chain No. |
Pitch(mm) | Roller diameter(mm) | Width between inner plates(mm) | Pin Diameter(mm) | Inner plate depth(mm) |
p | d3 | b2 min | d1 max | h2 | |
Y70 | 70 | 60 | 57 | 15 | 35 |
Y82.5 | 82.5 | 60 | 57 | 15 | 35 |
Y90 | 90 | 60 | 57 | 15 | 35 |
Y115.5 | 115.5 | 60 | 57 | 15 | 35 |
Y125 | 125 | 60 | 57 | 15 | 35 |
