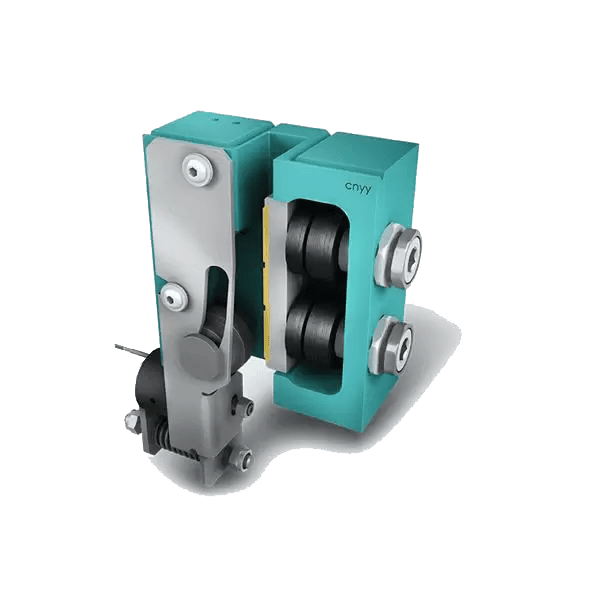

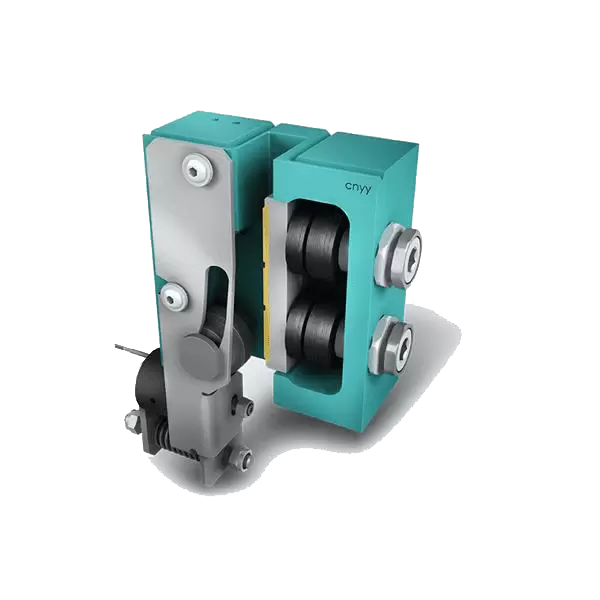

Wittur Electromechanical Safety Gear-GLSG-22U

150.00

As for material, labor, transportation cost and exchange rate are changing,  the price for this is just for reference only, please contact us beforehand if you are interested.

Category:

Description

Description

GLSG-22U is a progressive safety gear with mechanical and electrical components. Mechanical components are consisting of a combination of disk springs, braking elements and trigger mechanism with free movable roller.
The safety gear is activated by a compression spring; the electrical components are used to keep the safety gear in initial position.
The brake force is adjusted and sealed in the factory.

Highlights

  • Uni-directional progressive type safety gear for lifts up to 2,0 m/s
  • Application range: maximum 1850 kg load on safety, machined guide rails 9-16 mm oiled and dry condition
  • No conventional overspeed governor system needed
  • Fail safe design concept
  • SIL3 safety release system required (IEC 61508 compliant)
  • Electronical synchronization of left and right safety gear (simultaneous gripping)
  • Very short reaction time of the magnet release system ensures highest safety (low tripping speed)
  • Low release force from gripped situation
  • Sufficient running clearance to avoid unintended gripping
  • Versatile installation: can be installed either in a separate housing or on the vertical beam of the car sling
  • Small overall dimensions
  • Maintenance free operation
  • Complete traceability of the production of main components from raw material to final product with coding system stamped to the parts to enhance safety standard
  • Compliant with requirements of EN 81-20/50:2014
  • EU type certified according to Lift Directive
  • 100% tested and checked at factor

Features

Guide rail condition mass to be gripped (P+O) Fmax max. nominal speed
v
max. tripping speed
vmax
 machined / dry 560 – 1850 kg   2 m/s   2,63 m/s
 machined / oiled 570 – 1570 kg



power supply magnet [V / A] 24 V DC / 3,5 W
width of guid rail head  k [mm] 9 / 10 / 15,88 / 16 mm
min. width of guide rail running surface n [mm] 25
min. height of guide rail profil  h [mm] 62
temperature during operation [°C] -10 . +50°C
storage temperature [°C] -25 . 10°C
max. air humidity 90% / +25°C
93% / +40°C
protection class iP 2X
